NEXEDGE NX-3720/3820

NEXEDGE VHF/UHF MULTI-PROTOCOL DIGITAL AND ANALOG MOBILE RADIOS

Mobile radios come in 4 configurations; A base model (NX-3720/NX-3820), base model with built-in GPS and Bluetooth modules (NX-3720G/ NX-3820G), high-powered model (NX-3720H/ NX-3820H), and high-powered model with GPS and Bluetooth modules (NX-3720HG/ NX-3820HG).

FEATURES:

  • VHF/UHF

  • Multi-protocol digital radio: Designed to operate under an NXDN or DMR digital, and FM analog protocols

  • NXDN Conventional and Type-C & Gen2 Trunking

  • DMR Tier II & Site Roaming

  • Mixed Digital & FM Analog Operation allows gradual migration at your own pace

  • 4-line Basic Frame (2-line Main/Sub-LCD, icon, & key guide) / 14 Characters

  • 4-Line Text Message Frame (2 Lines ofText, icon & key guide)
    Note: The number of lines may vary depending on the display language (character set).

  • 7-color LED indicator

  • External and Internal Speaker Switching

  • Built-in GPS Receiver module for effective fleet management (G model only Optional KRA-40G Required)

  • Built-in Bluetooth for hands-free operation(G model only)
    Applicable Bluetooth profiles: HSP(Headset Profile provided) and SPP (Serial Port Profile available as an option; availability depends on the model)

  • Renowned KENWOOD Audio Quality can be achieved with Active Noise Reduction (ANR) that utilizes built-in DSP

  • Software DES and AES Encryptions for NXDN Conventional/Trunking and DMR Conventional protocols

  • MIL-STD-810 C/D/E/F/G

  • RF Power Output (High / Mid / Low): 50 W / 30 W / 5 W(H model only)

NEXEDGE NX-5700B/5800B

VHF/UHF DIGITAL TRANSCEIVER MULTI-PROTOCOL DIGITAL & ANALOG Mobile RADIOS

Thanks to multi-digital operation, NEXEDGE® offers a flexible communications system that is ideal for a wide range of industries and fields - ranging from utilities and traffic agencies to schools, taxi services and security companies. What's more, top-of-the-line features such as the transflective display for easy viewing in sunshine, GPS capability and Bluetooth ® connectivity all contribute to enhanced efficiency and cost-effectiveness. From top to bottom, the NX-5000 Series means business..


FEATURES:

  • 5 W - 50 W (136-174 MHz) Models

  • 5 W - 45 W (380-470, 450-520 MHz) Models

  • Maximum of 4,000 CH/Radio capacity, 512 CH/Zone, 128 Zones

  • DB-25 Accessory Connector

  • 4 W Speaker Audio

  • Multi-Protocol operation in P25 (Phase I&II), NXDN® protocols

  • Mixed Digital & FM Analog Operation allows intelligent migration in mixed sites and easy migration with digital radios in other sites

  • Large, Color 2.55" (154 x 422 pixels) TFT Display for at-a-glance operational status checking

  • Easy to follow GUI and Multi-line Text to convey more information

  • Dual Remote Control Head Option and Multi-Band (Multi RF Deck) Control Option providing scalable configurations for various operations and applications

  • Built-In GPS Receiver/Antenna for effective fleet management

  • Bluetooth® Module built-in for hands-free operation

  • Active Noise Reduction (ANR) utilizing built-in DSP for suppression of ambient noise

  • Renowned KENWOOD Digital Audio Quality

  • Built-in 56-bit DES Encryption

  • Optional 256-bit AES Encryption

  • microSD/microSDHC Memory Card Slot for increased memory capacity for "Voice & Data"

  • IP54/55 and MIL-STD-810 C/D/E/F/G

NEXEDGE NX-700H/800H

NEXEDGE® VHF/UHF Digital & FM Mobile Radios

​

​

​

​

​

FEATURES:

  • 5 W (136-174 MHz ) Models

  • 5 W (380-470, 450-520 MHz) Models

  • 3 W (700/800 MHz) Models

  • Full Key Models (w/ numeric keypad) and Standard Key Models (w/o numeric keypad)

  • Maximum of 4,000 CH/Radio capacity, 512 CH/Zone,128 Zones

  • 1 W Loud Speaker Audio

  • Multi-Protocol operation in P25 (Phase I&II), NXDN® and Analog protocols

  • Mixed Digital & FM Analog Operation allows intelligent migration in mixed sites and easy migration with digital radios in other sites

  • Large, Color 1.74" (240 x 180 pixels) Transflective TFT Display for better interface even in direct sunlight and with use of polarized sunglasses

  • Easy to follow GUI for at-a-glance operational status checking and Multi-line Text to convey more information

  • 4-way Directional-pad (D-pad) and 2-Position Lever Switch for intuitive control and operation

  • Built-In GPS Receiver/Antenna for effective fleet management

  • Bluetooth® Module built-in for hands-free operation

  • Active Noise Reduction (ANR) utilizing built-in DSP with two microphones for suppression of ambient noise

  • Renowned KENWOOD Digital Audio Quality

  • Built-in 56-bit DES Encryption

  • Optional 256-bit AES Encryption

  • Built-in Motion Sensor for life-critical man down detection

  • MicroSD/microSDHC Memory Card Slot for increased memory capacity for "Voice & Data"

  • IP67/68 and MIL-STD-810 C/D/E/F/G

Kenwood is pleased to introduce their NEXEDGE® family of digital mobile radios, the NX-700H/800H. This fine radio provides conventional and trunking operation, and provides 6.25 kHz digital narrowband operation. NEXEDGE® was designed to provide advanced communication solutions that meet the needs of private enterprise and public sectors today and in the future. NEXEDGE® includes features such as FM Analog @ 25 and 12.5 kHz channels, NXDN® digital @ 12.5 and 6.25 kHz channels, compliance with current frequency assignments, and NEXEDGE® will easily convert to very narrow bandwidths in the future.

TK-7180/8180-MPT

VHF/UHF MPT1327 Trunked Mobile Radios

The 180-Series (TK-7180/8180 MPT) premium mobile line strikes a perfect balance of specifications, features and costs in this broad base platform designed for the public safety, public service, government and private industrial sectors. The wide frequency range, transceiver specifications and power are perfect for both metropolitan and suburban radio systems and environments. The extra large capacity and Zone programming facilitate departmental, inter-agency interoperability, mutual aid and tactical channel organization. The remote mount option permits easy aesthetically pleasing installation into existing radio consoles and contemporary sedans. Inversion Scrambling and Encryption /ANI control permits first level to high level voice security and dispatch functions satisfying homeland security and confidentiality requirements. Emergency Call (front panel & footswitch input) provides distress notification with FleetSync, MDC-1200/G-Star and DTMF ANI formats. The VGS-1 option offers a unique zone / channel voice guide for no-look channel selection and a voicemail function for missed call recording while out of the vehicle. Full FleetSync® includes PTT ID, Caller ID and non-voice status and text messaging. FleetSync®, DTMF or Two-Tone Selective Call provides built-in talkback paging capability. The DB-25 and programmable interface I/O's permit interface with data modems, headset/intercom systems, police motorcycle headset/PTT systems for vehicular installations or remote control termination panels for base/control station fixed installations

​

FEATURES:

  • 136-174 MHz, 30/50W

  • 450-520, 400-470 MHz, 30/45W

  • 8 Networks / 250 Group / Call Addresses

  • Single Site Trunking

  • Multi-site Network Trunking

  • 12 Character Alphanumeric LCD

  • 6 Backlit PF Keys

  • DTMF Encode

  • Voice Inversion Scrambler Built-In

  • Encryption Board Control

  • DB-25 Accessory Connector

  • Remote Mount Option

TK-5710/5810

VHF/UHF FM & Project 25 Digital Mobile Radio

The TK-5710/5810 premium high specification heavy-duty offers conventional FM and conventional P25 digital operation for present and future interoperability requirements for law enforcement, fire and emergency services. Built on Kenwood's advanced 90-Series design, the TK-5710/5810 is available in dash mount, single head and dual head remote mount control with choice of 12 or 14-character high resolution backlit dot matrix LCD. The controls and customizable PF keys provide an intuitive user interface simplifying P25 and FM operation for all user types. The P25 trunked option permits operation on local, regional and statewide Project 25 compliant networked systems. The extra large capacity and Zone programming facilitate departmental, inter-agency interoperability, mutual aid and tactical channel organization. Encryption /ANI control permits basic to high level voice security and dispatch functions satisfying homeland security and confidentiality requirements. Standardized DES-OFB and AES encryption options permits advanced secure interoperable voice communications. The DB-25 and 15-pin accessory connectors permit interface with data modems, headset/intercom systems, police motorcycle headset/PTT systems for vehicular installations or remote control termination panels for base/control station fixed installations​.

FEATURES:

  • 5 W (136-174 MHz ) Models

  • 5 W (380-470, 450-520 MHz) Models

  • 3 W (700/800 MHz) Models

  • Full Key Models (w/ numeric keypad) and Standard Key Models (w/o numeric keypad)

  • Maximum of 4,000 CH/Radio capacity, 512 CH/Zone,128 Zones

  • 1 W Loud Speaker Audio

  • Multi-Protocol operation in P25 (Phase I&II), NXDN® and Analog protocols

  • Mixed Digital & FM Analog Operation allows intelligent migration in mixed sites and easy migration with digital radios in other sites

  • Large, Color 1.74" (240 x 180 pixels) Transflective TFT Display for better interface even in direct sunlight and with use of polarized sunglasses

  • Easy to follow GUI for at-a-glance operational status checking and Multi-line Text to convey more information

  • 4-way Directional-pad (D-pad) and 2-Position Lever Switch for intuitive control and operation

  • Built-In GPS Receiver/Antenna for effective fleet management

  • Bluetooth® Module built-in for hands-free operation

  • Active Noise Reduction (ANR) utilizing built-in DSP with two microphones for suppression of ambient noise

  • Renowned KENWOOD Digital Audio Quality

  • Built-in 56-bit DES Encryption

  • Optional 256-bit AES Encryption

  • Built-in Motion Sensor for life-critical man down detection

  • MicroSD/microSDHC Memory Card Slot for increased memory capacity for "Voice & Data"

  • IP67/68 and MIL-STD-810 C/D/E/F/G

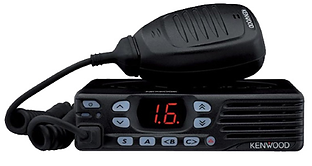

KENWOOD NX-720/NX-820

The new NX-720 mobile radio platform with NEXEDGE. With 260 channels and flexible features such as Mixed Mode provides a straightforward migration path as current analog radios are replaced with NXDN® digital. The NX-720/820 are the perfect next generation solution for your installed base of enterprise and industrial customers. They’re also easy on the budget, with prices lower than previous model series.

Features include

  • 260 Channels/128 Zones

  • Digital Conventional mode/Digital Trunking mode/Analog Conventional mode

  • Analogue and Digital mode

  • GPS Available

  • Voice announcer

  • 1- 25W Output Power

​

Package includes

  • NX-720 / NX-820

  • Users manual

  • DC-cable

  • Mounting bracket

KENWOOD TK-7302/TK-8302

TK-7302HV/8302HU VHF/UHF Compact FM Mobile Radios

KENWOOD's new TK-7302HV/8302HU delivers reliable mobile performance with extra wideband coverage (UHF: 70MHz) and such features as QT/DQT signaling, multiple scan functions and a voice inversion scrambler. Yet this tough IP54/MIL-STD-compliant radio is decidedly user-friendly, providing high-quality audio, voice announcement, and a large display with adjustable brightness for simple operation, day and night.


The TK-7302HV/8302HU offers ample capacity for multiple channels and radio systems: 16 channels and 2 zones. And once it is programmed, users can select specific channels within a set range.


Clear audio means confident communications, but power output is not the only factor that determines how easy it is to use a radio in varying noisy environments. As an audio specialist experienced in psychoacoustics, KENWOOD can draw on decades of expertise at every step: component selection, construction, optimization, evaluation and analysis. The resulting audio performance - specially engineered for transceivers and with frequency response optimized for the human voice - is undeniably clearer and crisper.

​

A D-sub 15-pin terminal enables the simple connection of various types of external equipment. It can be used for Ignition sense, External Switch, Horn Alert, and External Mic, among others. A Molex interface is also available with the optional KCT-60M cable.

NX-740H/840H

NEXEDGE® VHF/UHF Digital & FM Mobile Radios

NEXEDGE is KENWOOD’s innovative digital radio system, designed to meet the highest demands of today’s radio system environment and to provide users with a multitude of NEXEDGE-abilities to transform their demanding daily operations. Designed on a new NEXEDGE platform featuring proven NXDN™ technology with an affordability for every budget. These new NEXEDGE mobiles come standard with a host of features sure to exceed the needs of many demanding applications and is the ideal analog to digital migration choice utilizing true 6.25 kHz technology providing the important elements of design, features, reliability and overall value.

​

• 50W VHF (136-174 MHz)
• 45W UHF (450-520 MHz)
• Max. 16 CH per Zone / 2 Conventional Zones
• FleetSync®, MDC-1200, DTMF
• Voice Channel # Announcement
• Emergency Call Features
• NXDN Scrambler (digital)
• Voice Inversion Scrambler (analog)
• 6.25 kHz CH (Digital) / 12.5 kHz CH (analog)
• 4W Speaker Audio
• 2-Digit LED CH Display
• 8 Programmable I/O Ports
• 9 Programmable Function Keys (PF Keys)
• MIL-STD 810 C/D/E/F
• IP-54 Water/Dust Intrusion
• Premium 3 Year Warranty

TK-5910

700/800 MHz FM & P25 Digital Mobile Radios

KENWOOD's new 700/800 MHz radios fully expand our P25 Digital Public Safety Radio lineup. The TK-5410 portable and TK-5910 mobile were designed expressly for public saftey agencies deploying 700 / 800 MHz P25 radio systems or expanding existing 800 MHz systems. Built on KENWOOD's field-proven TK-5x10 hardware platform with enhanced microprocessing, these rugged MIL-SPEC / IP-rated units cover the entire Public Safety 700 MHz and 800 MHz voice bands including NPSPAC channels.

​

- 30 Watt (763-806 MHz)
- 35 Watt (806-870 MHz)
- 100 Zones / 1024 Channels
- Included Modes: Analog Conventional (25 & 12.5 kHz), P25 Conventional, & P25 Trunked
- TK-5x10 platform
- Personality Lists
- Zone/Channel Voice Announce
- Public Address
- Busy Channel Lockout
- Ignition Sense
- Transceiver Password
- MIL-STD 810 C/D/E/F, IP-54
- MIL-STD Noise Cancel Mic (included)
- MIL-STD 12-Key DTMF Mic Option
- Voice Guide & Storage Option*

TK-690/790/890

High Power Public Safety Mobile radios

The 90-Series premium high specification heavy-duty mobiles meet the needs of public safety, public service, government, rail, transportation, utility and private industry sectors are available in dash mount, single head, dual head, dual band and dual head/dual band remote mount configurations. The dual head units are the perfect answer for fire, EMS, supervisor /command post vehicles requiring two full radio control points. The dual band and dual head/dual band allow seamless selection of channels on two different bands. All configurations offer a choice of 8 or 14-character high resolution backlit dot matrix LCD. The controls and customizable PF keys provide an intuitive user interface simplifying operation for all user types. The extra large capacity and dynamic channel group programming facilitate departmental, inter-agency interoperability, mutual aid and tactical channel organization. Encryption /ANI control permits basic to high level voice security and dispatch functions satisfying homeland security and confidentiality requirements. The DB-25 and 15-pin accessory connectors permit interface with data modems, headset/intercom systems, police motorcycle headset/PTT systems for vehicular installations or remote control termination panels for base/control station fixed installations.

​

- 45W & 110W (136-156, 148-174 MHz)
- 40W (403-430, 450-490, 480-512 MHz)
- 110W - 75W (450-480 MHz)
- 110W (29.5 - 37.0, 35.0 - 43.0, 39.0-50.0 MHz)
- 160 Channels / Conventional
- Dual Priority Scan
- Single / Multi Group Scan
- QT / DQT
- Operator Selectable Tone
- Two-Tone Decode
- DTMF Encode / Decode / Stun
- Emergency Call Features
- Companded Audio
- Intercom
- Public Address
- Cloning
- MIL-STD 810 c/D/E/F
- Mil-Spec Noise-Cancel Mic (included)
- Mil-Spec 12-Key DTMF Mic Option
- FleetSync Encode

TK-6110

VHF Compact Low Band Mobile Radio

The TK-6110 addresses the basic specifications, features and costs in a dash mount mobile for low band public safety, public service, government, utility, private industrial/business and local government and school bus sectors. The high 70W power, 8 Character alphanumeric display and front speaker and compact dash mount chassis facilitate easy installation into trucks, busses and sedans. The noise blanker function reduces sensitivity to vehicle ignition noise common with low band frequency radio equipment. Encryption /ANI control permits first level to high level voice security and dispatch functions satisfying homeland security and confidentiality requirements. Emergency Call (front panel & footswitch input) provides distress notification with MDC-1200/G-Star and DTMF ANI formats. DTMF or Two-Tone Selective Call provides built-in talkback paging capability. The accessory interface I/O's permit interface headset/intercom systems, police motorcycle headset/PTT systems for vehicular installations or remote control termination panels for base/control station fixed installations.

​

- 70W (29.7 - 37.0, 35.0-50.0 MHz)
- 32-Channels Conventional
- 8-Character, Alphanumeric Display
- 7 Programmable Function Keys
- Die-Cast Chassis
- Flash Memory Advantage
- Priority Scan
- Mil-Std 810 C, D & E
- Operator Selectable Tone/Code (OST)
